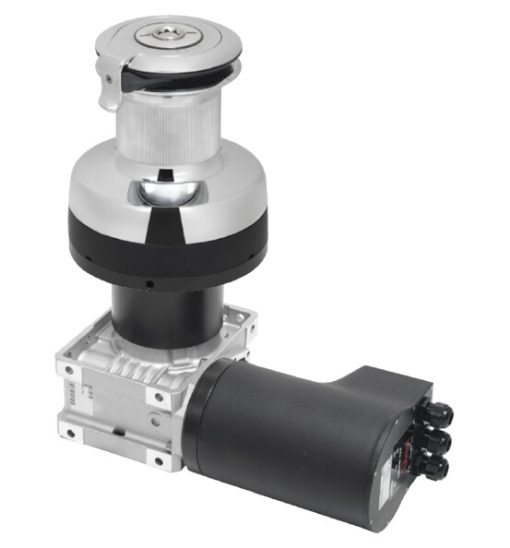

WINCH XT52EHCH SELF TAILING CHROME – 12V 1000W

Antal 52EH/CH sähkövinssi 12V 1000W, itsejalustava, moottori vaaka tasossa kromattu prossi rumpu.
XT ST cruise winch, electric horizontal, power 52, 2 speed, chromed drum
XT52EH12CH

Kaksi nopeuksinen vinssi. 1. Vaihde nopeampaa kelaukseen ja 2. vaihde maksimi voimalla sisään kelaukseen.
Rumpu mustaksi eloksoitu alumiini, runko ja vaihteet pronssia , AISI 316 keskiakseli, rullalaakerit.
Säätyvä köysi ura 8-14mm köydelle. Tukeva RST ohjuri. Säädettävissä 30 asentoon.

paino: 13kg
moottorin kanssa 30,kg
rummun ø: 105mm
pohja ø: 204mm
korkeus: 233mm
Saatavissa 12V ja 24V versiot
Lisäsksi tarvitaan kytkimet, rele ja sulake.

ELECTRIC WINCHES
All Antal winches, from model XT40 to model XT70, maxi W80.3 ST and W90.3ST can be fitted with an electric motor.

Horizontal and vertical motors. All the winches may be equipped with a horizontal motor and gearbox with a worm screw. The largest models may be supplied with a vertical motor which uses a high-efficiency hypocycloid speed reducer. Both solutions have been studied to ensure particularly compact dimensions and maximum silent operation. Manual use. Simply insert the handle to disconnect the gearbox-motor unit. Greater safety: accidental starting of the motor does not affect the winch, avoiding dangerous turning of the handle. Greater efficiency: the gearbox-motor unit does not turn in manual use, avoiding needless friction. Speed. Electric winches maintain two speeds both in manual use (inverting the direction of rotation of the handle) and in electric use (pressing one of the two control buttons). In electric winches the speeds are higher than in manual use.

All our electric winches are self tailing. Usually sold with chromed drum, powered winches are also available with black aluminum drum or classic natural bronze drum.
For the circuit diagram and accessories, such as switches, control-boxes and breakers, see the document Electric system and accessories in pdf.

HORIZONTAL AND VERTICAL MOTORS
All the winches may be equipped with a horizontal motor and speed reducer with a worm screw. The largest models may be supplied with a vertical motor which uses a high-efficiency hypocycloidal speed reducer. Both solutions have been studied to ensure particularly compact dimensions and maximum silent operation.

MANUAL USE
Simply insert the handle to disconnect the speed reducer-motor unit.
Greater safety: accidental starting of the motor does not affect the winch, avoiding dangerous turning of the handle. Greater efficiency: the speed reducer-motor unit does not turn in manual use, avoiding needless friction.

SPEED
Electric winches maintain two speeds both in manual use (inverting the direction of rotation of the handle) and in electric use (pressing one of the two control buttons).
It is of fundamental importance to be able to choose the most suitable speed for the manoeuvre that you want to perform; this allows fast recovery of the first part of the manoeuvre and more careful regulation in the final stage.

In electric winches the speeds are higher than in manual use.

The recovery speed, indicated in the tables, is measured without a load; in the presence of the maximum load, a speed reduction of up to 30% must be considered. All our electric winches are self tailing and come supplied with a chrome-plated bronze drum.
