Wichard 1305 D sakkeli 10mm Lukittuvalla Kuusikulma kiristyksellä AISI316L

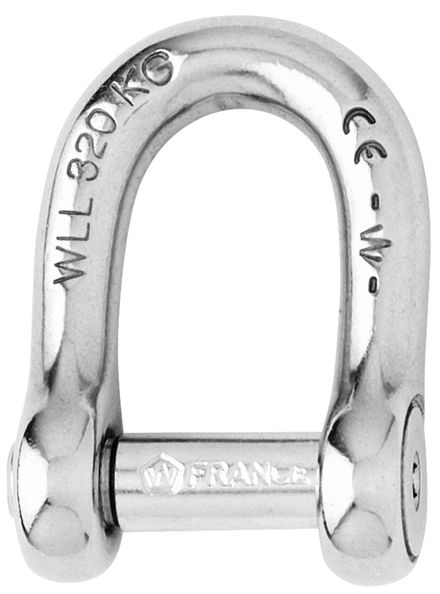

Self-locking shackle with allen head pin D forged in grade 316L stainless steel
The pin is locked into one of the indentations
The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
No risks of loose due to vibrations
Outstanding working and breaking loads
WLL: only for industrial applications (lifting i.e…)
CE marking
Materials 316 stainless steel grade
Working load (kg) 1440
WLL (kg) 860
Breaking load (kg) 4300
Weight (g) 99

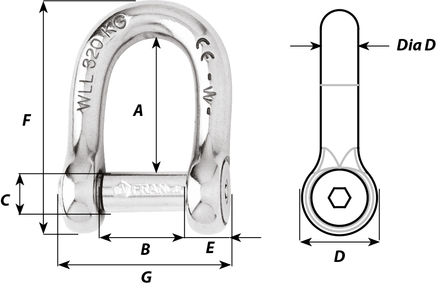

A (mm) 33
B (mm) 20
C (mm) 10
D (mm) 19
D diameter (mm) 10
E (mm) 9
F (mm) 57
G (mm) 41
