Tulip laajakulma taittokehrä D70X38mm -SWL 3000 kg

Antal Tulip laajakulma taittokehrä D70mm 801.071
Tulip sheave, sheave Ø 70 x38mm, SWL 3000 kg

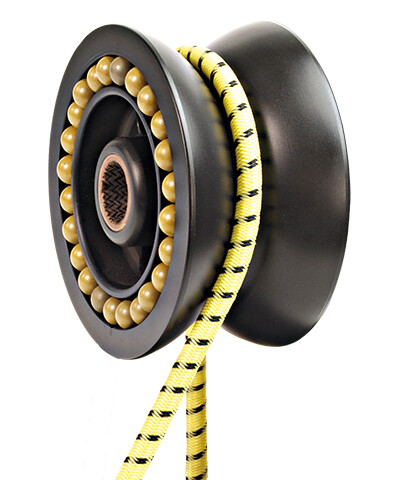

TULIP SHEAVE D70X38mm -13/32 balls
The Tulip sheaves are fixed sheaves that do not turn in the direction of manoeuvres since they accept quite different lead angles. The choice of a Tulip sheave instead of a revolving block comes from the need to reduce bulk and weight. The sheave, with an axial bearing in composite fibre and large round bearings (self-captive) in Torlon for side loads, is in anodized and Teflon coated aluminium and can handle very high loads.

Batten dimensions :15 mm
Ø sheave (D) :70 mm
Side bearing :Torlon balls
Radial bearing :composite fibre
Weight :190 gr
Ø max line :14 mm
SWL :3000 kg
Sheave material :Aluminum
D2 :15 mm
Thickness (T) :38 mm
