Tulip laajakulma taittokehrä D45mm SWL 1000 kg

Antal Tulip laajakulma taittokehrä D45mm
Tulip sheave, sheave Ø 45, SWL 1000 kg

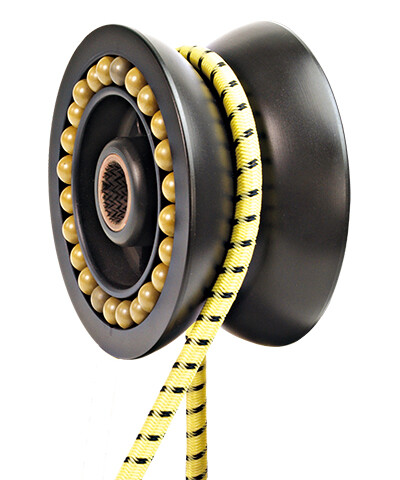

TULIP SHEAVE D45mm
The Tulip sheaves are fixed sheaves that do not turn in the direction of manoeuvres since they accept quite different lead angles. The choice of a Tulip sheave instead of a revolving block comes from the need to reduce bulk and weight. The sheave, with an axial bearing in composite fibre and large round bearings (self-captive) in Torlon for side loads, is in anodized and Teflon coated aluminium and can handle very high loads.>

Batten dimensions: 12 mm
Ø sheave (D) :45 mm
Side bearing :Torlon balls
Radial bearing :composite fibre
Weight: 40 gr
Ø max line :12 mm
SWL :1000 kg
Sheave material :Aluminum
D2 :12 mm
Thickness (T) :31 mm
tilaustuote Normaalisti
