Selden yhden nostimen ohjuri ø14-35mm
Tuotenumero: 558-080-03R / ex508-159-03R
Uusi malli korvaa 508-159-03R
Keulapurjeen ohjuri pitää fallit ohennuksessa ja oikeassa kulmassa rullalaitteelle.
On erittäin tärkeää että rullalaiteen leikariin nostin tulee 10° kulmassa, etten nostin kietty etustaagin ympärille.
Materiaali kromattu prossi
Max12mm nostinköydelle. Ei sovellu Code 0 nostimelle.
Vakio Furlex A, B 100S, 104S, 200S ja 204S ohjuri.
Sisältää tiiivisteen ja itseporaavat ruuvit 2 kpl
Halyard lead, ø14 x 35 mm, Stainless – For rope halyards
This is the standard halyard lead that comes with Furlex series 104/204. It is made of stainless steel and therefore only to be used for rope halyards – not wire. If you are using a wire halyard, order the bronze lead 508-159-03R instead. Bronze is softer than wire and therefore prevents damages to your halyard. The bronze version was included in all Furlex A, B, 100S, 200S/TD, 104S and 204S/TD from 1983 – 2024.

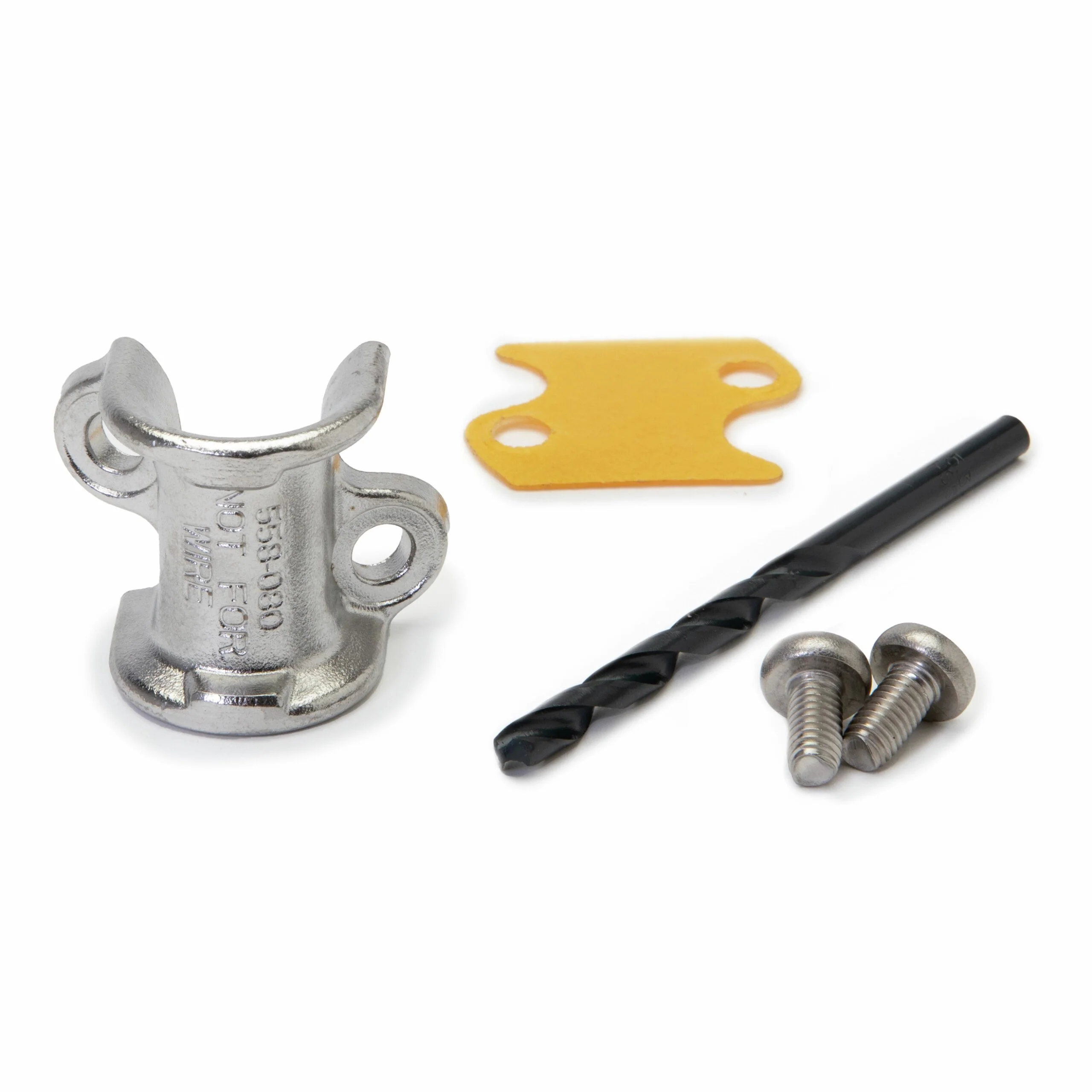

The kit comes complete with halyard lead, insulator to prevent contact between the stainless fitting and the aluminium mast section, M6 self-tapping screws and a ø5,3 mm drill-bit.
Important information on why you need a halyard lead!
Incorrect halyard routing can result in ”halyard wrap” which may cause severe
damage to the forestay, and put the entire rig at risk. The angle between the halyard
and the forestay must never be less than 10°!
2911-508-159-01
| Paino | 0.082 kg (kilogramma) |
|---|
