Ruuvattava padeye kansikiinike Ø 10mm D2-60mm

Antal pois ruuvattava padeye kansikiinike Ø 10mm D2-60mm

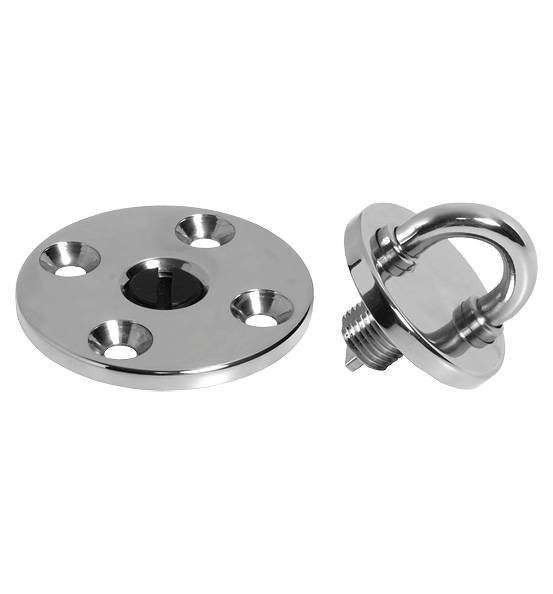

Screwed pad eye in AISI 316 S.Steel, Ø10, SWL 2500
Antal tuotenumero: 7310

Made of AISI 316 s.steel. This solution allows an easy removal of the eyebolt from the deck.

They can be fitted with a block and a “stand-up” spring. Blocks with screwed eyebolts include: block with spring and (removable) eyebolt and the base (fixed to the deck).

The same base is suitable for blocks of different sizes: same base for 70 and 80 mm blocks, same for 100 and 120 mm blocks and one for 140, 150 and 180 mm.

Height (H) 35 mm
Weight 0,58 kg
B 20 mm
C 28 mm
E 56 mm
SWL 2500 kg
Material S.Steel AISI 316
Fixing screws 4 x Ø8 mm
d 10 mm
D 60 mm
F 80 mm
