Antal pois ruuvattava padeye Ø 8mm kansikiinike D2-50mm

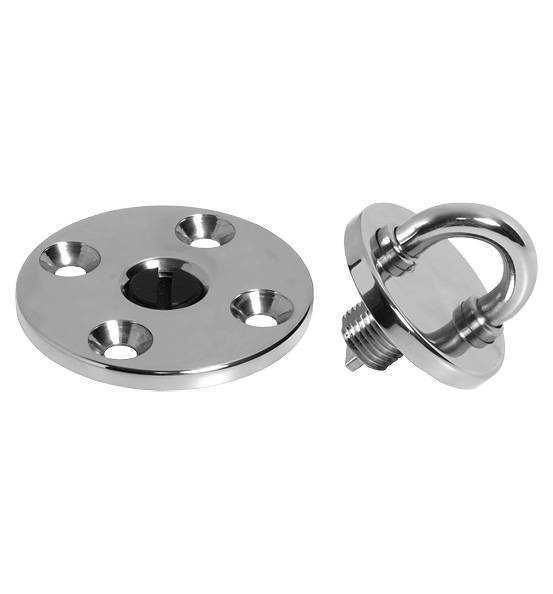

Screwed pad eye in AISI 316 S.Steel, Ø8, SWL 1500
Antal tuote numero 7308
Made of AISI 316 s.steel. This solution allows an easy removal of the eyebolt from the deck.
They can be fitted with a block and a “stand-up” spring. Blocks with screwed eyebolts include: block with spring and (removable) eyebolt and the base (fixed to the deck).
The same base is suitable for blocks of different sizes: same base for 70 and 80 mm blocks, same for 100 and 120 mm blocks and one for 140, 150 and 180 mm.

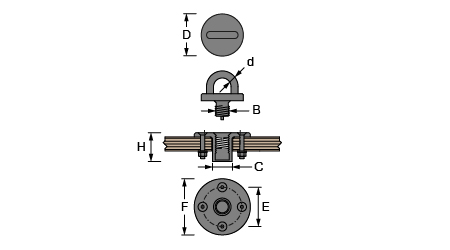

Height (H) 35 mm
Weight 0,56 kg
B 20 mm
C 28 mm
E 50 mm
SWL 1500 kg
Material S.Steel AISI 316
Fixing screws 4 x Ø6 mm
d 8 mm
D 50 mm
F 70 mm
| Paino | 0.56 kg (kilogramma) |
|---|
