S.steel mini blocks, sheave Ø 34, SWL 400 kg

LSINFO:Antal Komposiitti Kehrä D 34 H 11mm B.B.

Tuotenumeo:03411/M

S.steel mini blocks, sheave Ø 34, SWL 400 kg

This series offers extremely high working loads (SWL: 34×6 = 400 kg, 40×8 = 500 kg) while still compact and lightweight.

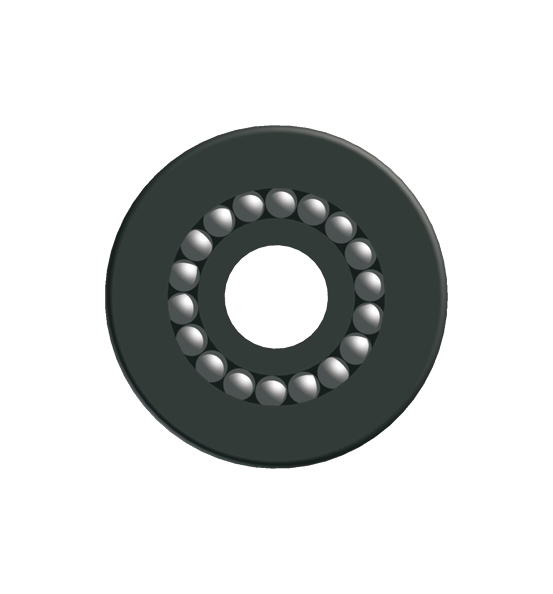

The sheave is made of resin with a double lateral ball-bearing. Cheekplates are made of perfectly polished AISI 316 stainless steel. The high quality materials guarantee a maintenance-free product. Resin sheave with double self-captive ball bearings.

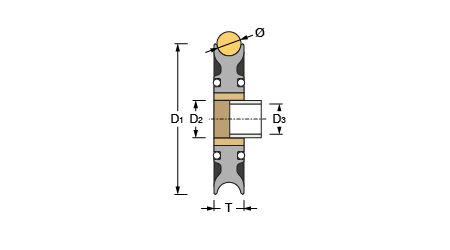

Ø sheave (D) : 34 mm
Side bearing : Delrin balls
Ø max line : 6 mm

SWL : 400 kg
Sheave material : Plastic
D2 : 10 mm
D3 : 8 mm
Thickness (T) : 10 mm

LSSISTER: 25004013M, 25004819F, 25006016F, 25006421F, 25007016F, 25008019F, 25007016R, 25007116R, 25008116R,
