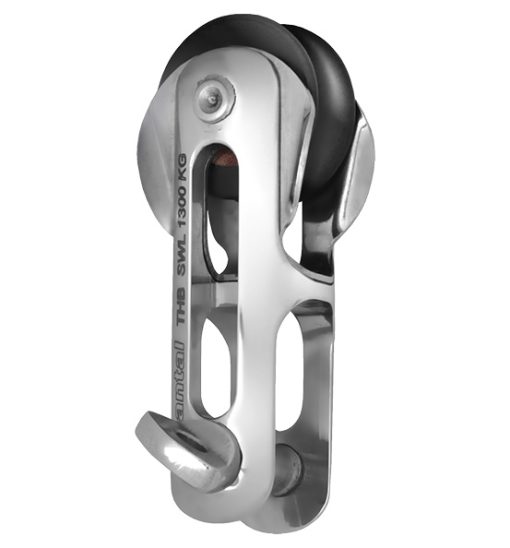

S.STEEL HALYARD BLOCK D26

Antal 2:1 HST Nostin ploki D26 -SWL 1300kg< Twin halyard block, sheave Ø 28, SWL 1300 kg Twin-halyard block” is specially made for a 2 to 1 main halyard.The very small sheave is aluminium made with a Composite Fibre bushing. The body is completely made in “High-resistance” stainles Technical characteristics Attribute: Value Overall height from deck (H): 16
Ø sheave (D): 26 mm
Side bearing: Delrin balls
Radial bearing: composite fibre
Weight: 0,08 kg
Ø max line: 10 mm
A: 16 mm
B: 16 mm
C: 54 mm
SWL: 1300 kg
Material: Steel Nitronic 50
Sheave material: Aluminum
d: 8 mm
