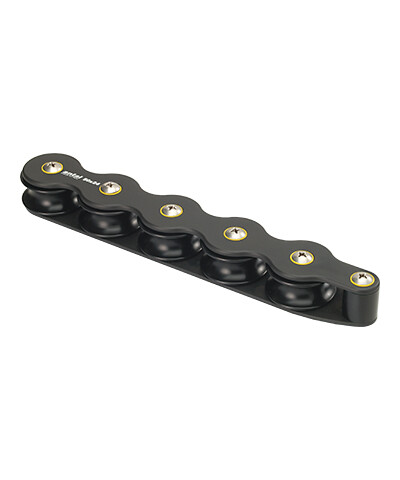

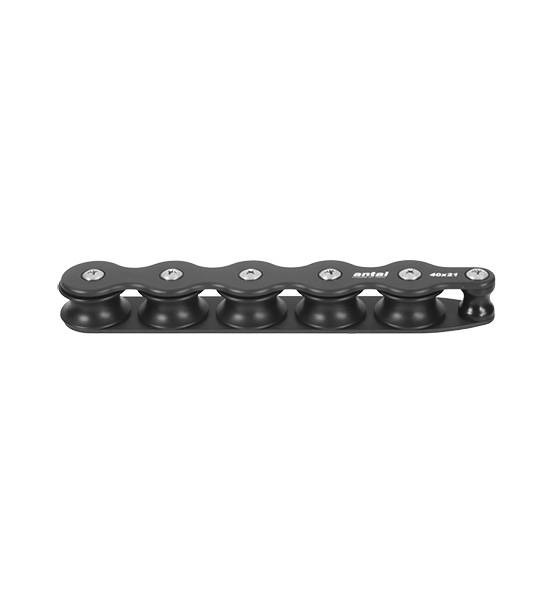

ORGANIZER 5 BB SHEAVES D40

Antal Kansijärjestelmä 5 kehrän 40mm sarja

Groups of 2 to 6 sheaves in 4 diameters of 40, 50, 60 and 70 mm. Double version also available, just add D to the model number. The 40 and 50 mm sheaves are manufactured in high-strength resin with a double side ball bearing. The 60 and 70 mm sheaves are manufactured in aluminium, hard black anodized, with a main composite fibre bearing and 2 side ball bearings.

Length (L) 155 mm
Height (H) 31 mm
No. sheaves 3
Ø sheave (D) 40 mm
Side bearing Delrin balls
Weight 0,27 kg
Ø max line 14 mm
B 44 mm
SWL 800 kg
Material Aluminum
Sheave material Plastic
Fixing screws 4 x Ø6 mm
