Antal Kansijärjestelmä 3 xTulip 60 mm
Tuotenumero: T630

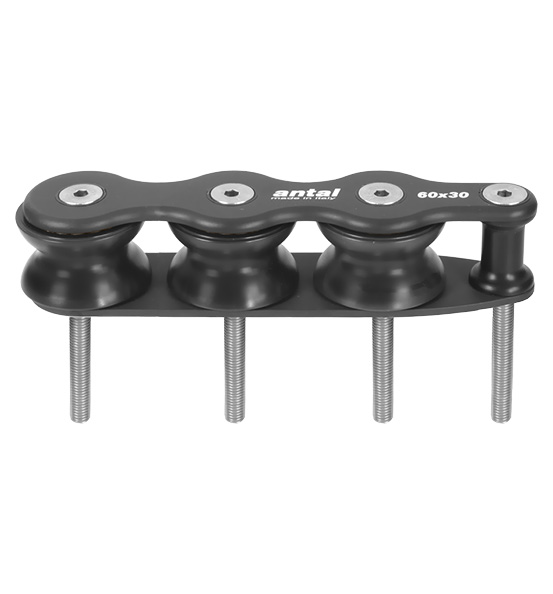

Tulip organizer with 3 sheaves Ø 60, SWL 2200 kg
With Tulip sheaves organizers can also be made. Batteries from 2 to 6 sheaves are available, with diameters 45 and 60 mm. The 45 mm sheaves are in high resistance resin, with a “self-captive” double side ball bearing. The 60 mm sheave, with an axial bearing in composite fibre and large round bearings (self-captive) in Torlon for side loads, is in anodized and Teflon-coated aluminium and can handle very high loads.

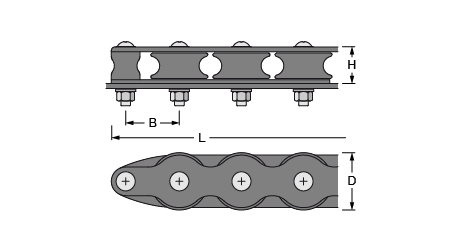

Length (L) 225 mm
Height (H) 49 mm
No. sheaves 3
Ø sheave (D) 60 mm
Side bearing Torlon balls
Radial bearing composite fibre
Weight 1,08 kg
Ø max line 14 mm
B 65 mm
Material Aluminum
Sheave material Aluminum
Fixing screws 4 x round head
Ø screws 10 mm
Sheave SWL (kg) 2200
Organizer SWL (kg) 3300
