Antal HST läpi plokinFlipflop taittoploki Ø75, SWL 1500 kg
816.075

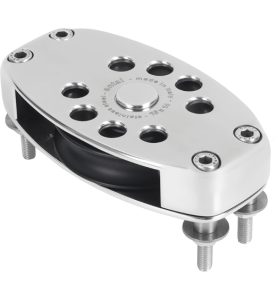

Antal Hollow pin deck block, sheave Ø75, SWL 1500 kg
The sheave rotates on a hollow pin with the line passing through the pin’s centre. This type of arrangement reduces the height of the line off the deck, and the side loads on the block.
The line position and its direction to the winch does not change, even when the sheave is articulated off-centre.Body completely made in polished s.steel. Sheave on Composite Fibre bearing and two side ball bearing.
Mounting screws, nuts and washers are included.
Length (L) 133 mm
Width (W) 60 mm
Height (H) 90 mm
Ø sheave (D) 75 mm
Side bearing Delrin balls
Radial bearing Composite Fibre
Weight 0,62 kg
Ø max line 12 mm
A 14 mm
SWL 1500 kg
Material S.Steel
Sheave material Plastic
Fixing screws 4 x Ø8 mm
