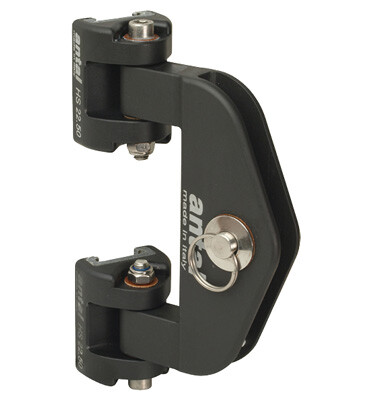

DOUBLE RACE HEADBOARD 40 CAR HS22.40D/R

DOUBLE RACE HEADBOARD 40 CAR.- HS22.40DR race headboard kaksoisvaunu 40mm

HB kaksoisvaunu 40mm RACE HS fiber insertit Käytetään Antal HS22.5x toppilevyn kanssa

Katso tästä Antal Fullbaten esite!

Four different slider types may form a Full batten system: simple, with joint, headboard slider and double. What changes are the ways they are connected to the mainsail and their function in the system. All components’ dimension and the distances of the sail from the mast are found in the sheet Full Batten Systems – Measures.

Simple slider.
This slider takes an intermediate position between two sliders with joint. It is sewed to the sail with a webbing. It usually has small dimensions as it is the slider with the lowest load in the system. Slider with joint. Its function is to be connected to a batten receptacle with a threaded pin. It is usually bigger than the simple slider because battens stress sliders more than webbings. Antal designs symmetric batten receptacles mounted inside the batten pocket.

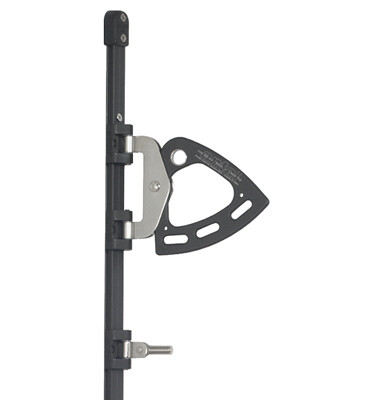

Headboard slider.
The slider which takes up the highest loads is realized double, triple or quadruple. With higher loads the headboard slider will need a higher number of sliders, or sliders with greater dimensions. Large mainsails or sails with wide roach require stronger headboard sliders. Headboard sliders are provided with a pivoting bracket for the coupling of the headboard. Also, Antal makes Fast release push pins available for a quick connection between sail and slider.

Double slider.
Where reefing points are and in correspondence of the clew angle, one may want to use a double slider with a double webbing connection to the sail. This because the outhaul and reef lines load up the tack angle at the mast.

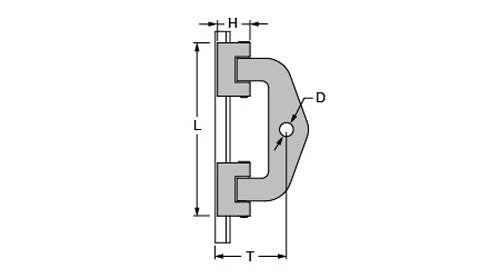

Length (L) :150 mm
Height (H) :37 mm
Track dimensions :24x16mm
Weight :370 gr
SWL :1600 kg
Sliders (No. x L) :2 x 50 mm
Offset (T) :80 mm
Pin (D) : 10 mm

Katso purjeneulojan Antal Full batten ohjeet tästä!
