Antal V-Grip plus Vinssinvapauttaja yhden 14-16mm

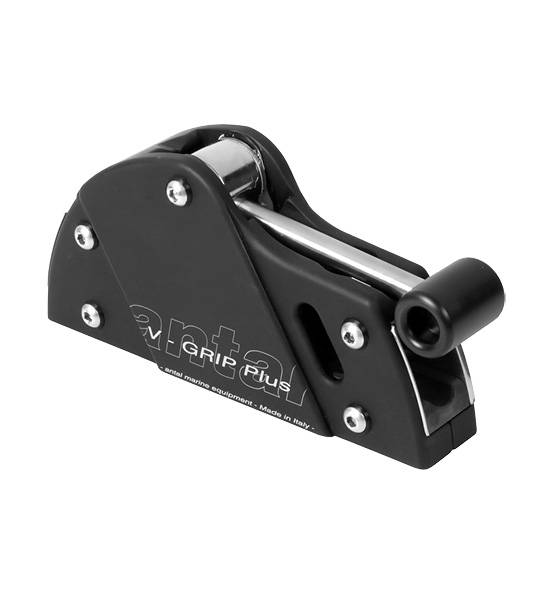

V-Grip Plus clutch, single clutch, for lines Ø14-16
508.161
3 models for lines from 10 to 16 mm available in single, double and triple.in single, double and triple.
Hard black anodized aluminium structure and AISIHard black anodized aluminium structure and AISI 316 s.steel mechanism, V shaped cam and lever.316 s.steel mechanism, V shaped cam and lever.
Easy opening under load for line releasingEasy opening under load for line releasing without the use of winch.without the use of winch.
Line retrieval can be achieved with the leverLine retrieval can be achieved with the lever closed, the line stops automatically in the newclosed, the line stops automatically in the new position with no slippage.position with no slippage
Length (L) 192 mm
Width (W) 41 mm
Height (H) 93 mm
Weight 1,1 kg
Ø min line 14 mm
Ø max line 16 mm
A 46 mm
B 128 mm
C 18 mm
Type Single
Fixing screws 2 x Ø10 mm
MWL 2100 kg
